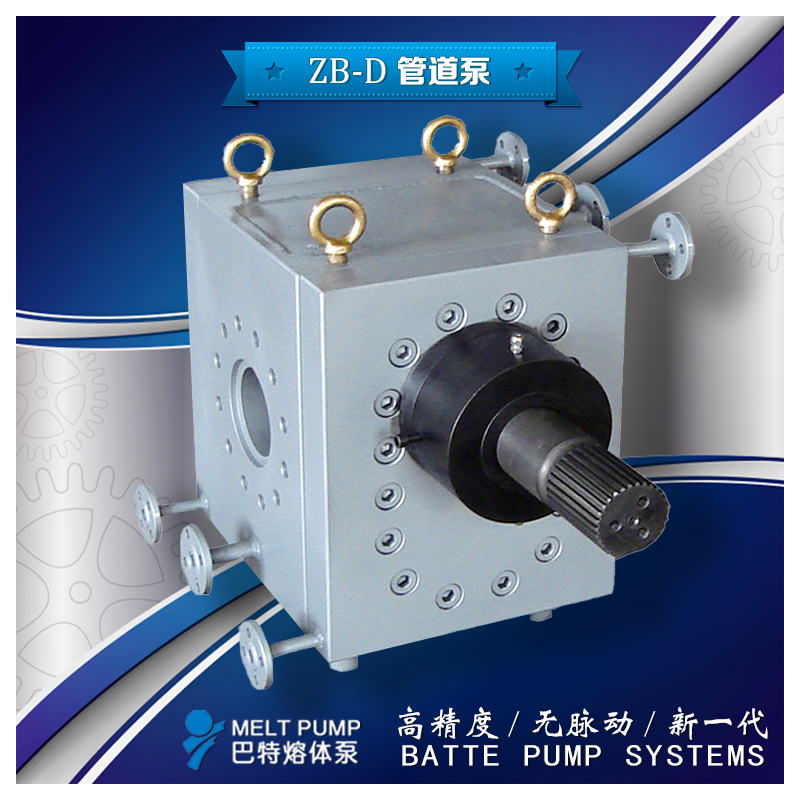

ZB-D系列管道泵


　　泵體: 不銹鋼

　　齒輪: M2鋼,其他材料可指定。

　　滑動軸承: 高溫工具鋼，不銹鋼。

　　軸封: 螺旋密封 填料密封

　　加熱系統(tǒng) : 熱媒加熱 導(dǎo)熱油

　　規(guī)格/流量范圍: 從0.5CC - 2500CC,  0.5cm3/rev - 2500cm3/rev


　　粘度: ≤40000 Pas

　　溫度: ≤400℃

　　清洗溫度: ≤450℃

　　進口壓力: 最高可達12MPa

　　最高壓差: 可達25MPa


　　ZB-D series pipeline pump is mainly used for stabilizing, pressurization and transportation of medium or high viscosity medium from the polymer flow layer. This series of melt pump adopts conduction oil heating, and applies to PET、PBT、PA、PC、PS、SAN、ABS、HIPS、PP、PE、POM, etc.


　　Material for Melt Pump Body: Stainless Steel

　　Material for Gear: M2 Steel (Optional)

　　Material for Sliding Bearing: High Temperature Tool Steel or Stainless Steel.

　　Shaft Sealing: Spiral Sealing or Packing Sealing

　　Heating System: Heating Medium or Conduction Oil Heating

　　Model/Volume Range: 0.5CC - 2500CC,  0.5cm3/rev - 2500cm3/rev


　　Viscosity: ≤40000 Pas

　　Working Temperature: ≤400℃

　　Cleaning Temperature: ≤450℃

　　Inlet Pressure: ≤12MPa

　　Differential Pressure: ≤25MPa
