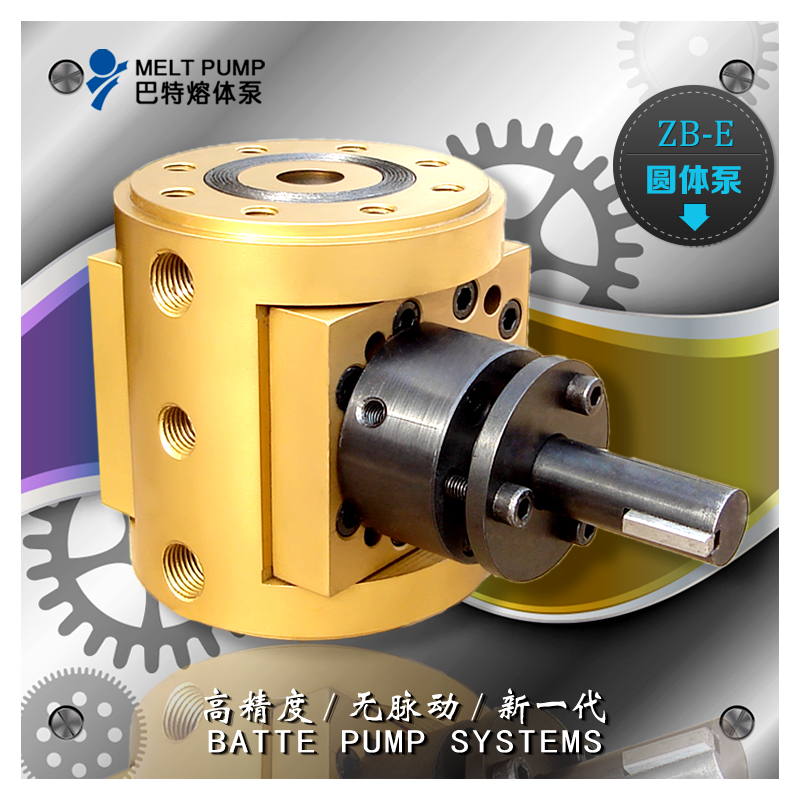

ZB-E系列圓體泵


ZB-E系列圓體泵主要用于擠出機或中高粘度聚合物的增壓和穩定流量輸送。加熱方式主要為電加熱。適用于PS . PET . PVC . PC . PA . PMMA . HDPE .LDPE . LLDPE . PP .等工藝中。


　　泵體: 高溫工具鋼，

　　齒輪: 高溫工具鋼，滲氮鋼

　　滑動軸承: 高溫工具鋼

　　軸封: 螺旋密封，填料密封

　　加熱系統 : 電加熱

　　規格/流量范圍: 從0.5CC - 2500CC,  0.5cm3/rev - 2500cm3/rev


　　粘度: ≤40000 Pas

　　溫度: ≤400℃

　　清洗溫度: ≤450℃

　　進口壓力: 最高可達12MPa

　　最高壓差: 可達25MPa


　　ZB-E series circular melt pump is mainly used for extruder or pressurization, stabilizing flow and transportation of medium or high viscosity polymer. This series of melt pump primarily adopts electrical heating, and applies to PS, PET, PVC, PC, PA, PMMA, HDPE, LDPE, LLDPE, PP, etc.


　　Material for Melt Pump Body: High Temperature Tool Steel

　　Material for Gear: High Temperature Tool Steel or Nitrided Steel

　　Material for Sliding Bearing: High Temperature Tool Steel

　　Shaft Sealing: Spiral Sealing or Packing Sealing

　　Heating System: Electrical Heating

　　Model/Volume Range: 0.5CC - 2500CC,  0.5cm3/rev - 2500cm3/rev


　　Viscosity: ≤40000 Pas

　　Working Temperature: ≤400℃

　　Cleaning Temperature: ≤450℃

　　Inlet Pressure: ≤12MPa

　　Differential Pressure:≤25MPa
